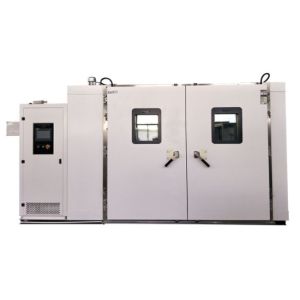

Laboratory Test Chamber Walk In Temperature Humidity Chamber
Environmental Test Chambers
Product description
Walk-in high and low temperature test chamber provides the need to
place a large number of items to be tested at the same time for
reliability test, in order to shorten the total test time of a
single product, or the temperature and humidity stress screening of
the product, and the need for a larger space for dynamic test, and
large volume of products are suitable for this equipment.
Use
Walk-in high and low temperature alternating humidity and heat
environment test chamber is a necessary test equipment in the new
energy industry. It can carry out high temperature, low
temperature, temperature cycle, rapid temperature change, high and
low temperature alternating humidity and heat and other
environmental reliability tests according to IEC60068,
MIL-STD-81OF, GJB150A, GB2423 and other standards.
Features
1. Can use the overall structure or library plate unit combination,
the content product can be arbitrarily expanded, easy disassembly;
2. The insulation layer is made of high-strength polyurethane (PU)
foaming and high-density glass fiber wool, which can avoid the loss
of capacity;
3. Multi-layer filter water filling device, automatic water
filling, no need to manually add water. And there is water shortage
automatic protection;
4. The box body is equipped with a test hole, which can be used for
external test power cord or signal line;
5. Adopt modular refrigeration unit to ensure manufacturing quality
and convenient maintenance and replacement;
6. Low temperature continuous effective operation for 1000 hours
without frosting, temperature does not rise.
Spec
| Model | B-TH3.75-D95 | B-TH5.6-D95 | B-TH9.8-D95 |
| Interior capacity(M3) | 3.75 | 5.6 | 9.8 |
| Quanity of measurable module | 5 | 8 | 12 |
| Max.moudle size | 2000x1100x50mm |
| Interior dim(cm) | 125x230x130 | 180x230x135 | 285x230x150 |
| External dim(cm) | Depends on the model |
| Temperature range | 20℃~150℃ |
| Humidity range | 20~98%RH(20℃~95℃) |
| Temperature deviation | ±2℃ |
| Temperature fluctuation | ±0.5℃ |
| Relative Humidity fluctuation | ±5%RH(≤75%RH) ±3%RH(≤75%RH) |
| Controller | TFT touch screen(Chinese or English) |
Details pic
1. Programming control
2. Running with load
3. Testing and downloading
4. High performance
5. Customized production
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection,
external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers'
requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will
change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be
decided according to production season and order quantity.
FAQ
Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size,
temperature range, humidity range, power supply, product, etc.),
leave us an inquiry or email and we will response promptly!
Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .
Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for
cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is
available for us.
Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during
warranty period, exclude consumables and man-made damages),
life-time technical service
Factory introduction
BOTO GROUP LTD.Is a professional manufacturer of environmental test
equipment and test service. Our company was established in 1998,the
plant covers 55,000 square meters and a construction area of 6,800
square meters, existing 160 workers and we can provide operation
video for machines.
Main equipment
- Constant Temperature and Humidity Test Chamber
- Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
- UV Accelerated Aging Test Chamber
- Mini Environmental chamber / Desktop Environmental Test Chamber
- Walk in Constant Temperature and Humidity Lab
- High Temperature Chamber and Other Lab Test Equipment etc.
In the domestic market, we have many end customers, third-party
testing institutions, research institutes, leading enterprises in
different industries, and some agents. For the overseas market, we
hope to find more general agents, distributors and importers to
cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also
designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Production Process
Production Details
Factory Inspection
We control quality from the materials, electronic parts,
controller,comppressor, solenoid valve, and many parts of the
products.
Certification
The certificate is valid until June 17, 2024
Service
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution
provide within 3 working days. We can offer operation video and
English operation muanual. We can provide operation video for
machines.
Cooperative partners
BOTO ADVANTAGE
Customers photos
Our Team
Our Services
During the whole business process, we offer Consultative Selling
service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested
suitable products to customer to confirm. Then quote most suitable
price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized
requirements. Offer reference photos to show the products
appearance. Then, confirm the final solution and confirm final
price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO
requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again
with the machine. Then do own factory calibration or third party
calibration(as customer requirements). Check and test all the
details and then arrange packing.
Deliver the products in confirmed shipping time and inform
customer.
4) Installation and after sale service:
Defines installing those products in the field and providing
after-sales support.
