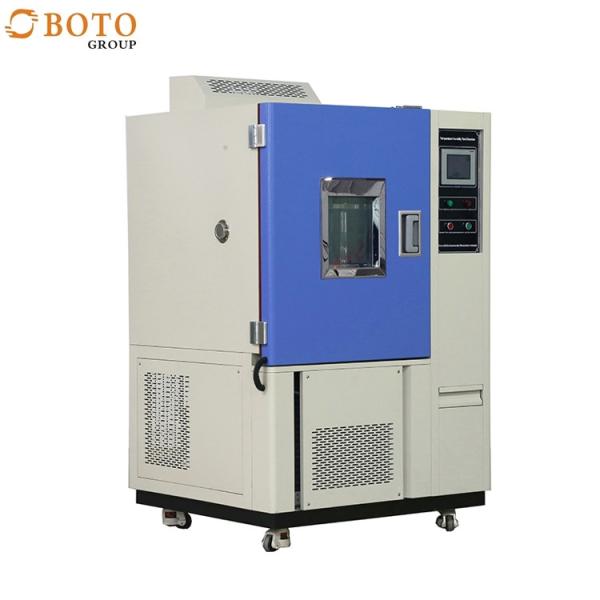

Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

    Buy cheap Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber from wholesalers

    Buy cheap Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber from wholesalers
    • Buy cheap Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber from wholesalers

    Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

    Ask Lasest Price
    Brand Name : BOTO
    Model Number : BT-TH-100
    Certification : CE ISO
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 150 Set/Sets per Quarter
    Delivery Time : 5-25 days
    • Product Details
    • Company Profile

    Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

    Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber


    Product Description

    Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

    Advantage of Constant Temperature Compact Humidity Chamber

    One machine, multiple functions
    Long time 85 °C / 85 % RH test
    Cold resistance test,
    Thermal cycle test,
    High and low temperature test,
    Storage condition,
    Calibration function.

    ● Wide temperature ranges and volume selection.
    ● Programmable touch screen controller.

    Specifications of Constant Temperature Compact Humidity Chamber
    Product Name
    Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber
    Model
    BT-TH-100
    BT-TH-225
    Internal dimension (mm)
    400*500*500
    500*600*750
    Overall dimension (mm)
    860*1050*1620
    960*1150*1860
    Temperature range
    -20℃ ~+150 ℃
    Low type
    Ⅰ: -40℃ Ⅱ:-70℃
    Humidity range
    20% ~ 98% RH
    Temperature fluctuations
    ± 0.5 ℃
    Temperature deviation
    ± 2.0 ℃
    Humidity deviation
    ± 2.5% RH
    Heating rate
    3 ℃ / min
    Cooling rate
    1 ℃ / min
    Temperature Sensor
    PTR Platinum Resistance PT100Ω/MV A-class
    Temperature Resolution
    ± 0.001 ℃
    Humidity sensor
    Dry and wet bulb sensor
    Power Supply
    AC220V 50HZ
    Environmental conditional
    5℃~+40 ℃ ≤85% RH
    Detail of Constant Temperature Compact Humidity Chamber

    Test Area


    2pcs 2.5mm SUS304 stainless steel shelf;
    Each shelf loads 50KGS;
    Specimen shelf height can be adjustable;
    Specimen shelf can be
    remove;
    Punching design Suitable for test pieces with different size

    Control Panel

    Programmable color touch screen type 120 programs,
    99 steps perprogram
    RS232 for PC link
    More option function:Multi-language display, PC link,USB, App


    Cable Hole

    Internal diameters 50mm,125mm or custom; Rubber sealing;

    Stainless steel cover;
    Supply power to workroom's specimen, to better finish testing Beautiful

    Large Viewing Window

    Interior lighting
    Window coated with conducting film to protect it from frost.
    Size is 250*300mm W*H.
    Observe the sample changes more clearly
