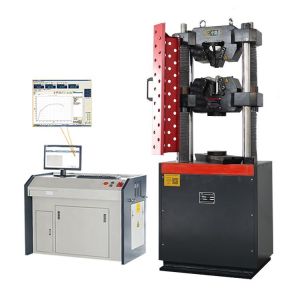

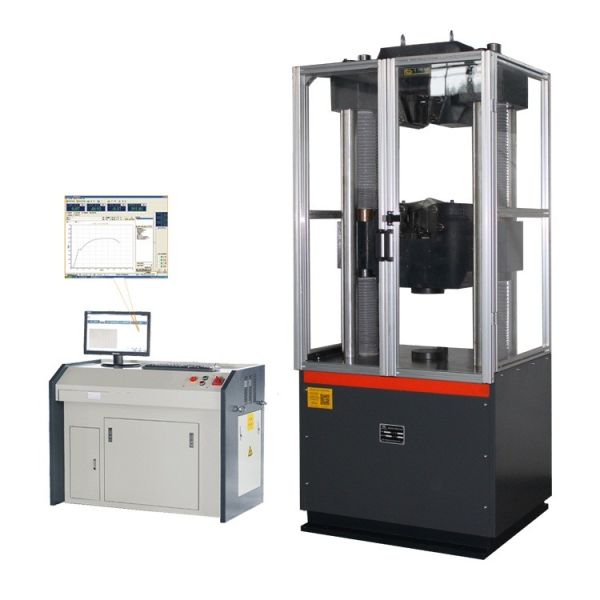

Mechanical Universal Testing Equipment For Metal Steel Materials
Application
This product is mainly used for the tensile test of metal materials
and component, testing the tensile strength, yield strength, stipulated plastic extension strength, elasticity
modulus, percentage elongation after fracture and other mechanical
performance index. Hydraulic wedge clamping. The testing results can be automatically
stored, and the testing report, including the testing data and testing curve would be generated and
printed automatically.
Features
1) Computer + Software control and display 6 kinds test curves:
Force-displacement, force-deformation, stress-displacement,
stress-deformation,force-time,displacement-time
2) Can be installed extensometer to test deformation of rubber or
metal material
3) Can do high temperature test by high temperature oven and
furnace
4) Can be installed all kinds of test fixtures, manual / hydraulic
/ pneumatic fixtures
5) Can be customized height, width, and follow any test standard or
customer request
6) Also have ETM Digital Display Type.
Function and performance index
| Model | BOTO-10000 |
| Maximum Testing Force | 1000 kN |
| Class of Testing Machine | 0.5/1 |
| Efficient Measure Range | 2%-100%FS |
| Relative Value Display Accuracy | ±0.5%/±1% |
| Discrimination of Testing Force (mm) | 0.005 |
| Adjustment Range of Stress Rate Control | 1MPa/s~~60MPa/s |
| Accuracy of Stress Rate Control | ±1%/±2% |
| Discrimination of Deformation Measure (mm) | 0.005 |
| Adjustment Range of Strain Rate Control | 0.00025/s~~0.0025/s |
| Accuracy of Strain Rate Control | ±1%/±2% |
| Discrimination of Displacement Measure (mm) | 0.001 |
| Adjustment Range of Displacement Rate Control | 0.00025/s~~0.0025/s |
| Accuracy of Displacement Rate Control | ±0.5%/±1% |
Range of Holding Control of Stress, Strain and Displacement | 0.3%~~100%FS |
Accuracy of Holding Control of Stress, Strain and Displacement | ±1% |
| Tensile Volume(mm) | 700 |
| Compression Volume(mm) | 550 |
| Column Space(mm) | 550 |
| Round Specimen Clamping Range(mm) | Φ6-Φ45 |
| Flat Specimen Clamping Thickness(mm) | 0-30 |
| Max. Width of Flat Specimen Clamping(mm) | 75 |
| Pressure Plate Dimension(mm) | Φ160 |
| Overall Dimension(mm) | 910*830*2300 |
| Oil Source Console Dimension(mm) | 1150*800*1000 |
| Total Motor Power(kW) | 2 |
| Total Weight(kg) | 3200 |
