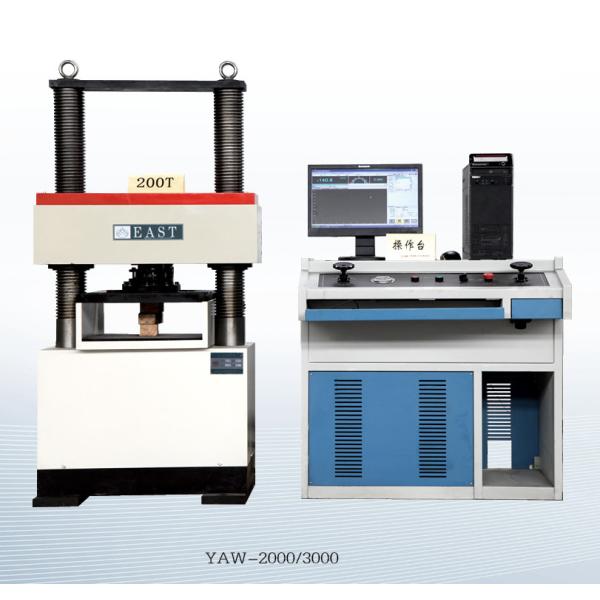

Computer controlled compression testing machine
This testing machine is mainly used for compressive strength test
of cement and other building materials. The machine is composed of
three major units: hydraulic main machine, controller, and computer
control system. It can fully meet the requirements of
GB/T50081-2002 "Standard for Test Methods for Mechanical Properties
of Ordinary Concrete Cement", and it solves the closed-loop control
of cement loading. Equipped with necessary grips (fixtures), it can
also be used for constant velocity loading compressive strength
test of bricks, stones and other materials.
This machine has various functions such as full-automatic
constant-speed loading, digital display of force value, automatic
data processing, printing and output of loading curve and test
report, data storage and query in the stage. Simple operation and
stable performance. It is the latest testing equipment for
compressive strength testing in the cement industry. The testing
data and results are authoritative and scientific. It is an ideal
testing equipment for the cement and building materials industry.
YES digital display pressure test force adopts hydraulic loading,
electronic force measurement, and has the functions of load
display, loading rate display, load peak retention, overload
protection and power failure data retention.
Parameters:
Model | MEP-10/20 | MEP-50 | MEP-100 | MEP-200 | MEP-500 | MEP-1000 |
Max. dynamic load(kN) | ±10/±20 | ±50 | ±100 | ±200 | ±500 | ±1000 |
Load testing range | 2%~100% |
Static loading testing precision | ±1% |
Nax. Piston stroke | ±50mm | ±50 mm | ±50 mm | ±75 mm | ±75 mm | ±75 mm |
Frequency | 0.001—40Hz |
Wave | Sine wave, triangular wave, square wave |
structure | Double- column | Four-column |
Test space(H×W)(mm) | 450×350 | 500×500 | 500×600 | 600×600 | 750×600 | 750×700 |
Overall dimensions (L×W×H)(mm) | 800×500×1800 | 1000×650×2430 | 1130×730×2430 | 1150×750×2650 | 1250×850×2950 | 1350×1350×3250 |
weight(kg) | 800 | 1200 | 1500 | 1800 | 4000 | 7000 |
Hydraulic source | Basic configuration | 10 L/min | 30 L/min | 30 L/min | 63 L/min | 63 L/min | 160 L/min |
Extension configuration | 30 L/min,63 L/min,160 L/min,200 L/min(optional) |
Power supply | 220V and 380V, according to national standard voltage configuration |
